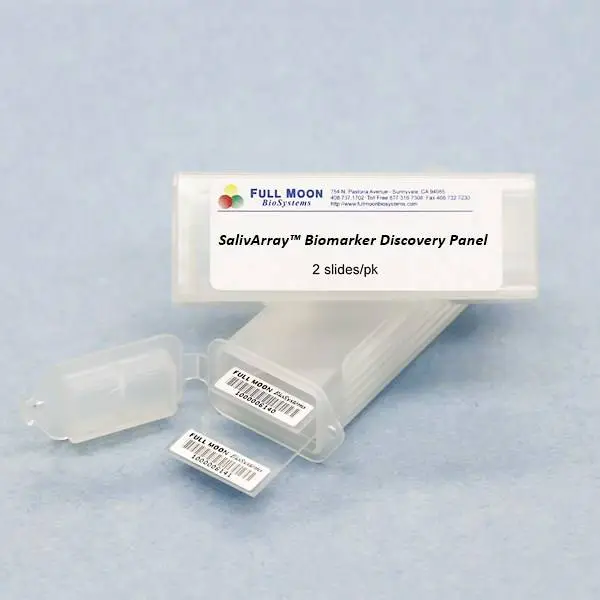

SalivArray™ Biomarker Discovery Panel
The SalivArray™ Biomarker Discovery Panel is a high-content antibody microarray specifically designed for saliva-based or serum-based research.
It features 247 clinically relevant biomarkers across 8 key biological pathways, encompassing a broad range of cytokines, chemokines, growth factors, adhesion molecules, enzymes, receptor proteins, and more. This panel enables simultaneous detection and comparison of multiple proteins in saliva and serum samples, providing a powerful tool for researchers studying inflammation, oral health, immune function, and systemic disease.
Saliva is a convenient and non-invasive biospecimen that reflects both local and systemic physiological states. The SalivArray™ is optimized to capture this complexity, supporting the discovery of biomarkers related to oral health, immune response, autoimmunity, inflammation, and systemic disease monitoring.
SalivArray™ — Precision. Non-invasive. Discovery-ready.
Key Features
- Optimized for protein profiling in saliva samples, with compatibility for serum and plasma.
-
Broad biological insight – cytokines, chemokines, growth factors, adhesion molecules, enzymes, receptors, structural proteins, and more.
-
Supports studies of inflammation, immunity, neurodegeneration, cancer, metabolism, and more
-
Enables biomarker discovery, validation, and comparative studies
-
Features 247 antibodies on one slide: 6 replicates per antibody
-
Compatible with standard fluorescence microarray scanners
Specifications
| Product Size: | 2 array slides per package for two samples (untreated vs. treated) |
| Featured Antibodies: | 247 antibodies; 6 replicates per antibody |
| Reactivity: | Human; Mouse; Rat |
| Suitable Sample Type: | Saliva | Serum | Cell lysate | Tissue lysate | |
| Detection Method: | Fluorescence | Compatible Scanners |
| Internal Controls: | Positive controls: beta-actin | GAPDH | Negative controls |
| Slide dimensions: | 76 x 25 x 1 mm |
| Spot diameter: | 260 - 280 um |
| Storage Condition: | 4°C for 6 months |
Product Details
Neuro & Brain: 4E-BP1, Acetylcholinesterase (AChE), Amyloid Beta, Amyloid A4 Protein Precursor, ARC, BDNF, b-NGF, Caspase-8, DJ-1, GDNF, GFAP, IKB alpha, mGluR2/3, Neurofilament (68kDa), Neurofilament (160kDa), Neurofilament (200kDa), NFL, NSE, p42 MAPK, Peripherin, Synuclein alpha, Synuclein beta, Synuclein gamma, Synuclein pan, Tau (ab-356), Tau (pT181), Tau (pT217), Tau (pT231)
Inflammation & Immunity: Alpha 1 Antichymotrypsin, Alpha antitrypsin, Amyloid A, BD-1, BD-2, Beta-2-Microglobulin, CCL11 (eotaxin), CCL2 (MCP1), CCL3, CCL4, CCL8 (MCP-2), CD14, CD40, CD59, CD81, CRP, E-Selectin, FAS, Fas-Ligand (TNFSF6), GCSF, Haptoglobin, ICAM-1 (CD54), IFN gamma, IgA, IgG, IgM, IL-1 alpha, IL-1 beta, IL-10, IL-13, IL-15, IL-17 alpha, IL-19, IL-1RA, IL-2, IL-4, IL-5, IL-6, IL-7, IL-8, MHC II (HLA-DP), MHC II (HLA-DR and DP), MPO, Platelet Factor 4 (CXCL4), TNF alpha, TNF Receptor I, TNF Receptor II, VCAM-1 (CD106)
Cancer & Tumors: AFP, CA125, CA15-3, CA19-9, CEA, Cytokeratin 19, FGFR1 Oncogene Partner, HER-2/neu, Heregulin, HPV 16 E6, HPV 16 E7, HPV 18 E6, HPV 18 E7, K-RAS, MALT-1, Maspin, Metastasis-associated protein MTA1, MUC13, MUM1, Osteopontin, PSA, Thyroglobulin
Metabolism & Hormones: Adiponectin, ApoE3, Ferritin, gAcrp30/Adipolean, human Albumin, IGF-BP7, Insulin, Insulin Receptor, Leptin, Resistin, Testosterone, Transferrin
Matrix & Remodeling: Collagen IV, Collagen XIV alpha1, Fibronectin, MMP-10, MMP-11, MMP-16, MMP-19, MMP-2, MMP-8, MMP-9, PAI-1, Thrombospondin-1, TIMP-1, TIMP2, TIMP3, TIMP4, uPAR
Growth & Angiogenesis: BMP7, Claudin 5, EGF, FGF22, Galectin-3, Midkine, TGF alpha, TGF beta 1, TGF beta 2, TGF beta 3, TGF beta Receptor II, TGF beta Receptor III, VEGF, VEGF-A, VEGFB
Cell Structure: ABCD1, Actin-gamma2, CD63, Catenin-alpha 1, Catenin-beta 1, Catenin-gamma, CD9, CDH24, CDH9, CEBPE, Desmin, DP-1, EFNA3, FOXN4, GPRIN2, GRB14, ITGB2, KCNMB2, ORAV1, Patched, Pax-5, SND1/P100, Tubulin alpha, Tubulin beta, Tubulin gamma, ubiquitin
Infection Response: ARFIP1, COX1, COX2, Cytochrome b561 D1, ERCC6, HDAC5, Helicobacter Pylori, HSP90A, MAP4K4, Thrombin Receptor, Troponin I

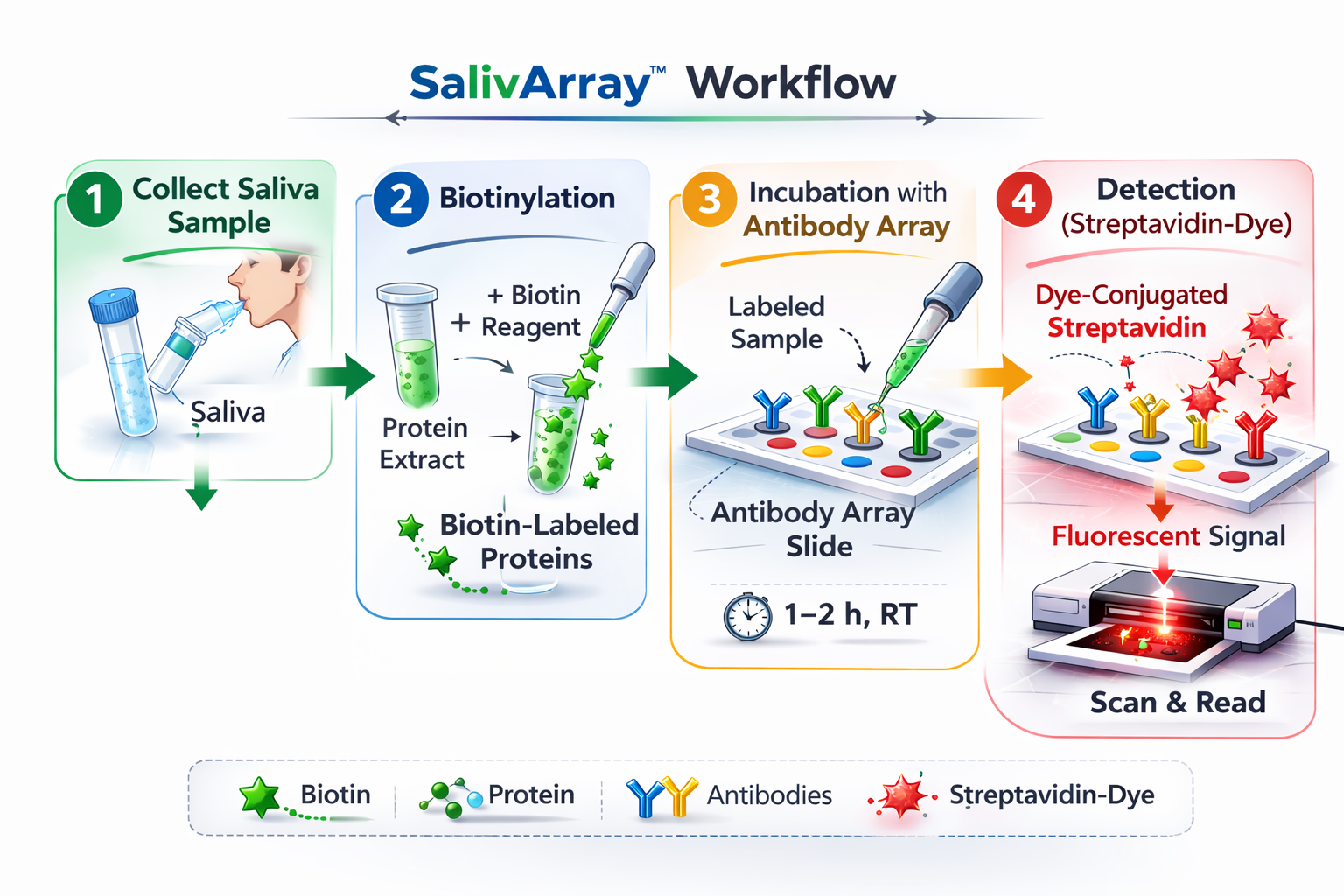

The ELISA based SalivArray™ Antibody Array platform involves four major steps:
- Protein sample preparation
- Biotinylation of protein samples
- Incubation of labeled samples with antibody array
- Detection by dye conjugated streptavidin
GAL File (To download, right click on the file name, then choose “Save target as”)
Frequently Asked Questions
Services
If you don’t have access to a microarray, send the finished arrays to our lab for scanning. Raw scan images are delivered in tiff format.
Cost: Free
Array Image Quantification and Analysis Service includes data extraction, data organization and analysis of the array images obtained through our array scanning service.
Cost: $260 per slide
Complete Antibody Array Assay Service allows investigators to send research samples to our laboratory for analysis. There is no need to purchase the arrays and reagents and running the assays yourself. Simply select the array of your choice, and then send off the samples to our lab. This convenient hands-off approach offers quick turnaround and reliable results, saving you valuable time and resources. All assays will be performed by our highly trained scientists at our headquarter in Sunnyvale, California. Results are delivered by email in 1-3 weeks.
Cost: $1,565vper sample
